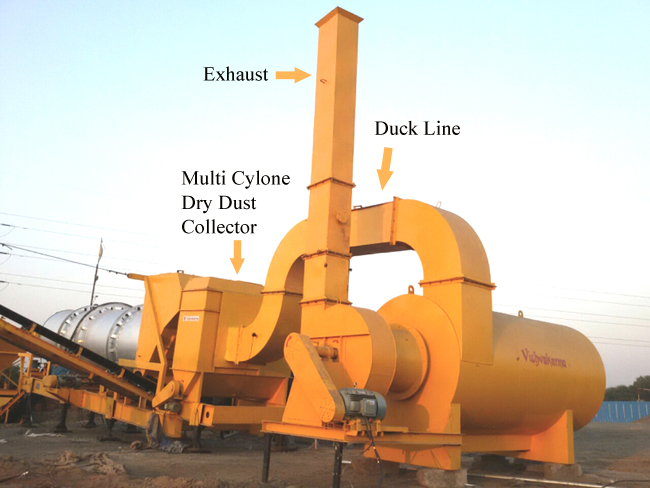

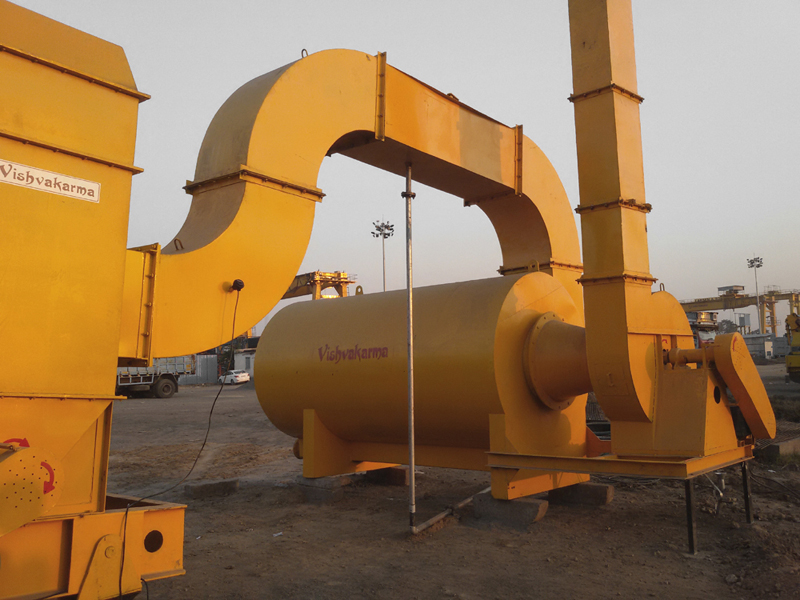

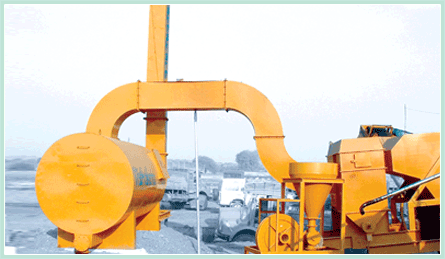

POLLUTION CONTROL UNIT (EXTREME TURBULENCE VENTURE TYPE) FOR DRUM MIX PLANT


SPECIFICATIONS


Exhauster inducts hot gases from the Thermo Drum Unit. Higher Pressure Water Jet is sprayed on to the gases which forms water based slurry and is diverted to the sludge Pond. Air pressure is reduced and remaining gases are exhausted. The pond is made such that, the surface water is again reused.



OPERATION SEQUENCE


Nozzles and Water Bearing Plates are made of Stainless Steel to resist corrosion. The Sludge Pond requires to be cleaned once a week based on normal site conditions. As a safety measure, always surround / cover the Sludge Pond with wire fence sonce, working temperature of water may be above 80 Degree. It is also necessary to have the Drain pipe submerged in pond.





TOP VIEW



FRONT VIEW



Description   DM-45 (40/60 TPH) DM-50 (60/90 TPH) DM-60 (90/120 TPH)
Dimension 1.8 x 3 m 1.8 x 3 m 1.8 x 3 m
Exhaust Capacity 10500 CFM 14500 CFM 18500 CFM
Water Pump 2 HP Mono Block 2 HP Mono Block 2 HP Mono Block
Sludge Pond Data 7 x 3 x 1.5 m 7 x 3 x 1.5 m 7 x 3 x 1.5 m
Exhaust Motor   20 HP 25 HP 30 HP

* Subject to location and aggregate dust content  * All the ratings are subject to change.
