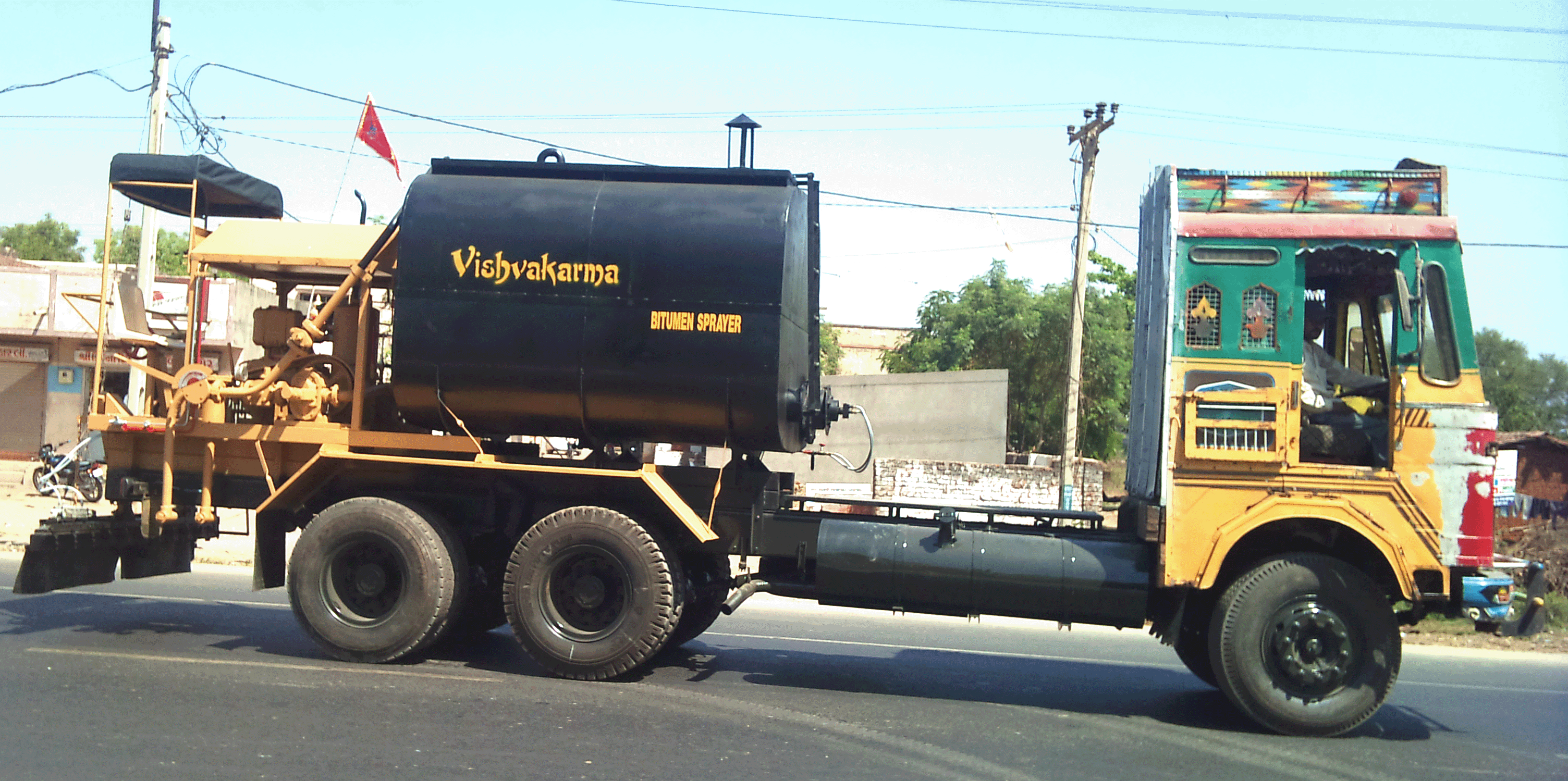

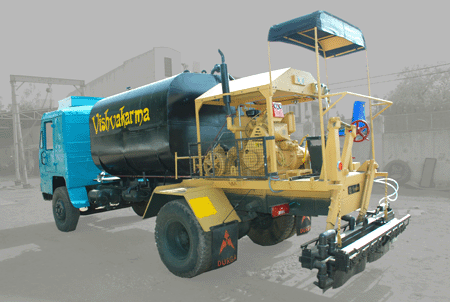

BITUMEN SPRAYER

          FEATURES

  • FULLY INSULATED TANK WITH HIGH PERFORMANCE OIL HEATING
  • AIR COOLED DIESEL ENGINE AND POSITIVED DISPLACEMENT  GEAR PUMP
  • FULLY-CIRCULATING  SPRAY BAR
  • OPERTOR’S PLATFORM WITH HOOD
  • SIMPLE PRESSURE CLEANING SYSTEM PROVIDED
  • DIGITAL SPEED INDICATOR
  • MOISTURE SEPARATOR FOR CLEAN & DRY AIR

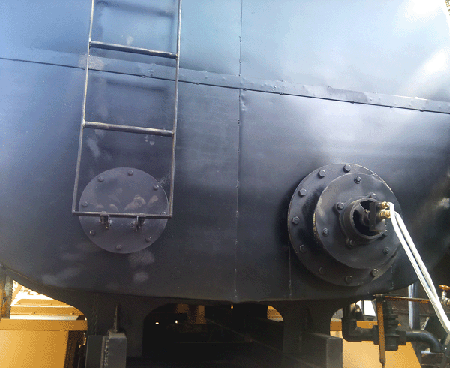

BITUMEN TANK
Model 4000 / 6000 VBS
Capacity 4000 / 6000 Liters.
Tank Shape Oval
Insulation 50 mm thick glass wool
Temperature Gauge 0-300°C
Manhole 450 mm Dia.
Mounting Tank Mounted on any truck chassis of wheel base 17 6" / 166"

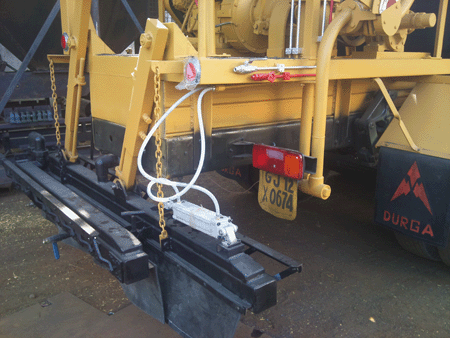

SPRAY BAR
Length 2.5 m
Length with Extension 4.00 m
Control of Spray Bar Pneumatically Operated
Pre-Heating of Spray Bar Fully circulating of pre-heated Bitumen

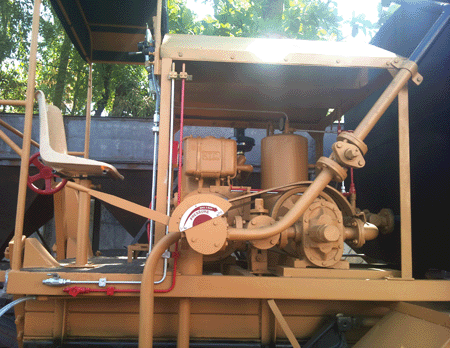

BITUMEN PUMP
2" X 2" size positive displacement gear pump with output of 400 Ltrs./ Min.

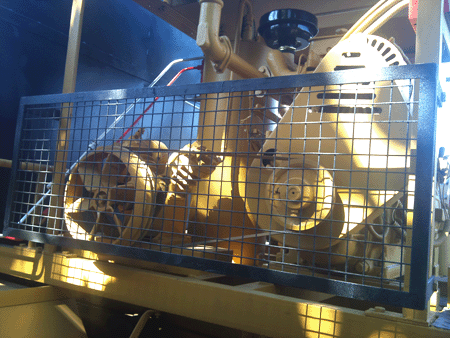

AIR C0MPRESS0R
Standard make 2 Cylinder air compressor.
BURNER
Fuel Consumption 20 Ltr./ hr.
FUEL TANK
130 Ltrs. Capacity
ENGINE
Standard make air cooled diesel engine.
