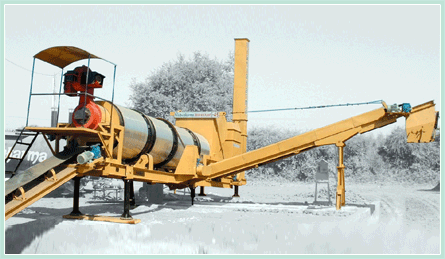

  ASPHALT DRUM MIX PLANT

DM – 35 (30 / 40 TPH) , DM – 45 (40 / 60 TPH) , DM – 50 (60 / 90  TPH) ,
DM – 60 (90 /120 TPH) , DM – 65  (150  TPH )



ASPHALT DRUM MIXING UNIT [DRYER & MIXING UNIT]

This unit of the  drum mix asphalt plant is the heart of the plant. As  called the  aggregate is headed with automatic burner to require  temperature  and bitumen is added in the drum at suitable stage and bitumen is coated evenly  to the aggregate in this drum. There are stages in the drum like preheating, heating , mixing Zone. That helps the aggregate and bitumen to heat and mix uniformly. The fins in the dryer unit are specially designed to get maximum heat efficiency that is to say minimum heat loss.

DUST COLLECTOR & EXHAUST UNIT :-
The dust collector  unit is fitted at the rear end of the Plant that is at the out put end of the plant. It is having an efficient dust collecting system and fitted with shutter, with can be varied as required. An exhaust fan having sufficient capacity to ensure an effective airflow through the dryer and through the dust – collecting unit.

FOUR BIN FEEDER UNIT : -

The four bin feeder unit is having four  bins and each bin is driven by individual Dc  motor  drive so as  to accurately conveyor, flow of aggregate from each bin four bin feeds aggregate to gathering  conveyor which  is driven by Ac motor drive . it is fitted with electronic weighting system material is  form gathering conveyer flow to double deck vibrating screen for removing over size material.





VIBRATING SCREEN UNIT :-

The unit is double deck type vibrating screen removes oversize materials and  feeds the remaining materials to charging conveyer. Separate size of screen can be provided for removing oversize  material is form different kind of mix.






LOAD-OUT CONVEYER UNIT :-

  It is elevates the mix aggregate to such height  that the mix material can be directly loaded in the dumper . it is fitted with hydraulically operated hopper whit helps the material to fall without segregation





SLINGER CONVEYOR :-
The slinger conveyer is provide for transferring the aggregates  received from gathering conveyer as well as from double deck vibrating screen after removing the oversize aggregates and discharging it into dryer  drum under combustion zone.
FUEL TANK :-
Fuel tank is also supplied with the plant, having 2000 upto 10000 ltrs capacity .

FILER UNIT:-
It is also fitted at the output end of the plant Filler unit into lime / cement/dust feeding rotary pump with fitted dc motor drive and air blower quantity of filler material to be added in the mix.






CONTROL CABIN UNIT :-
It is insulated cabin is  provided with electric panel to operate the entire plant , the cabin may not have air conditioning system as per client requirements.
ELECTRIC CONTROL PANEL :-
It is fabricated from 16 SWG CRC sheet and processed with painting, the panel has in –feed  master control, Aggregate flow measurement system, which controls asphalt flow, individual bin, asphalt flow indicator, automatic synchronization of aggregate with asphalt, aggregate and asphalt with totalizer printer for print -out record of all parameters for an instant verify of formula, automatic temp controls with indication, metering for aggregate, asphalt, input voltage, moisture and motor load.
