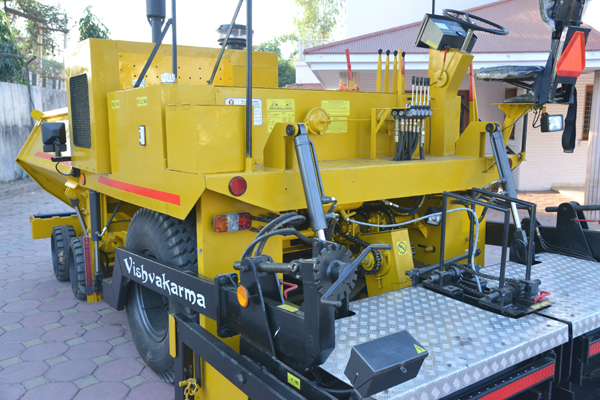

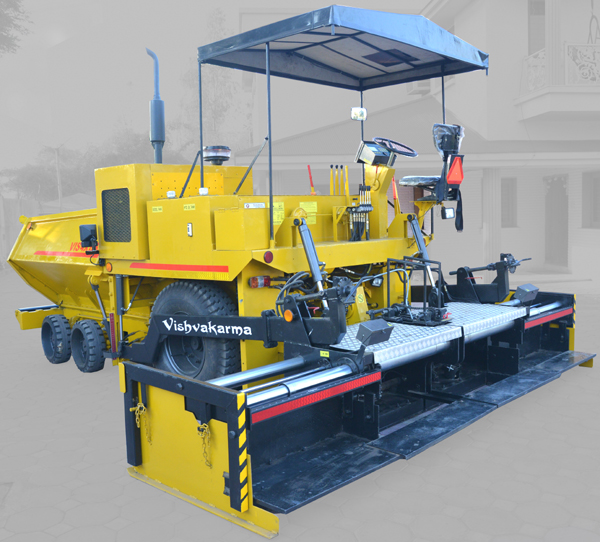

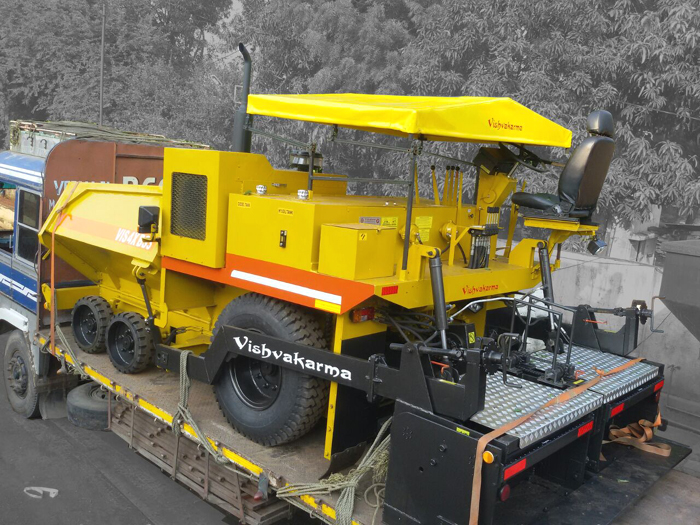

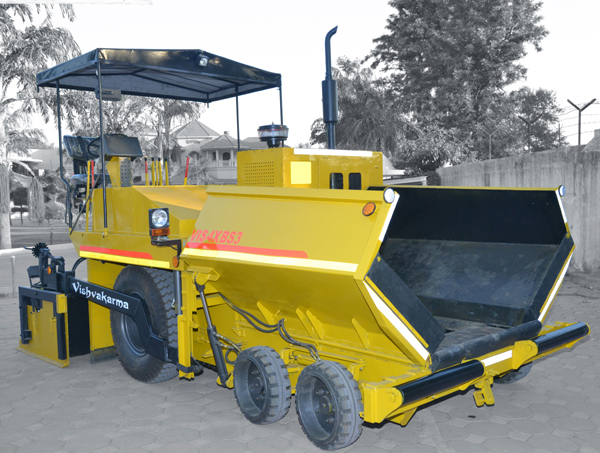

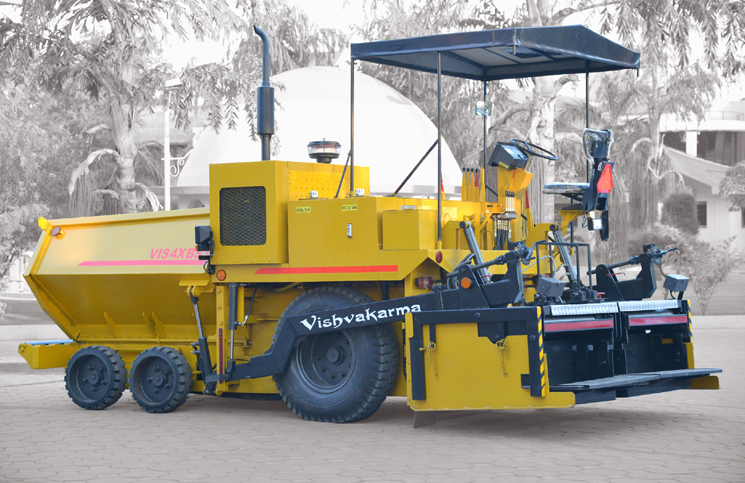

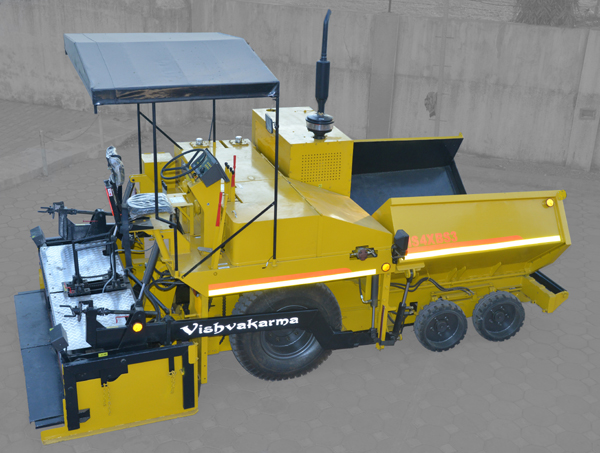

HOME PRODUCTS        SEMI HYDRO PAVER  MODEL  VIS4XBS3 ( ASPHALT COMBINE WET MIX )







  VIS4XBS3 Maximum Pave width  4.5 m Kirloskar engine reted @ 76 HP OR 105 HP
Paving Capacity  75 / 100 TPH Maximum Paving Thickness 10 upto 200 mm
Paving Speed - 4-23 m /min Travel Speed - 15 km/h

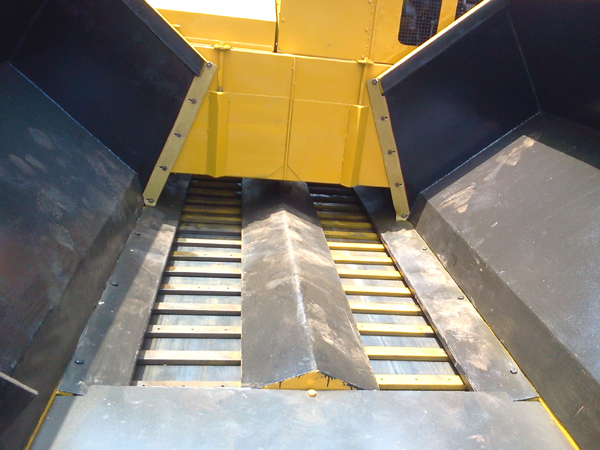

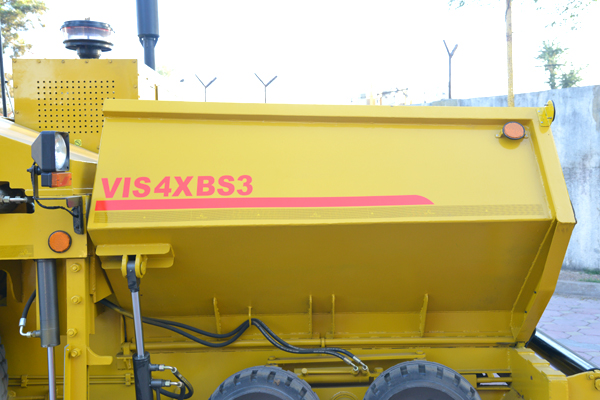

Vibrating Screed Hopper  4 cu.m Capacity
Mechanical Transmission Drive 12 V Electronic System

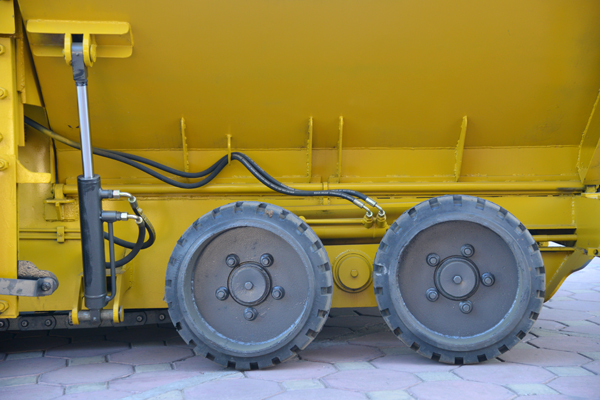

Power Steering Four Steering Bogey Wheels

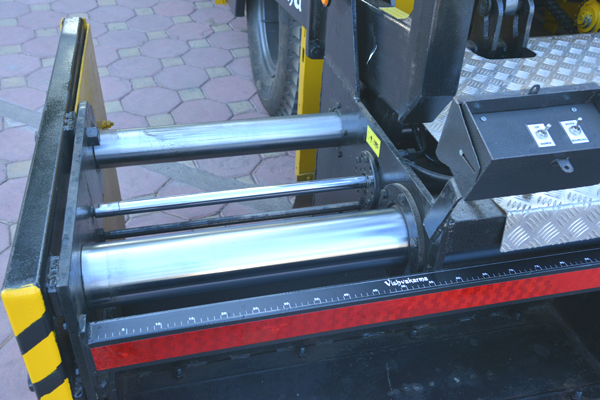

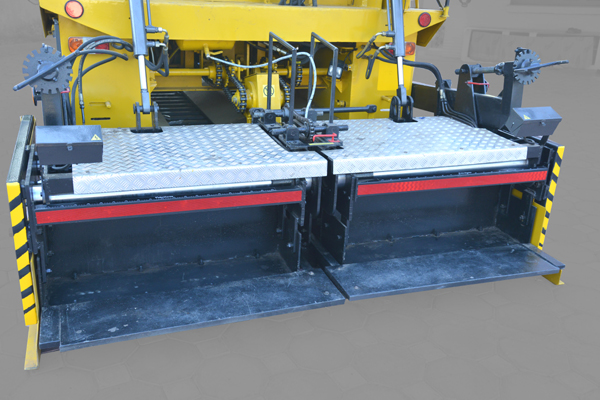

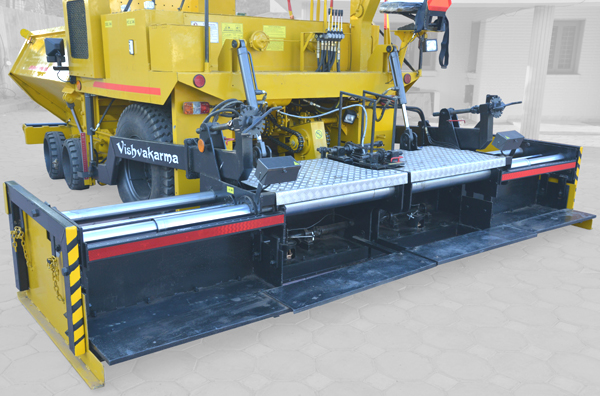

Variable Hydraulic Telescopic Screed
Electronic Grade & Slope Control ( Optional ) *
