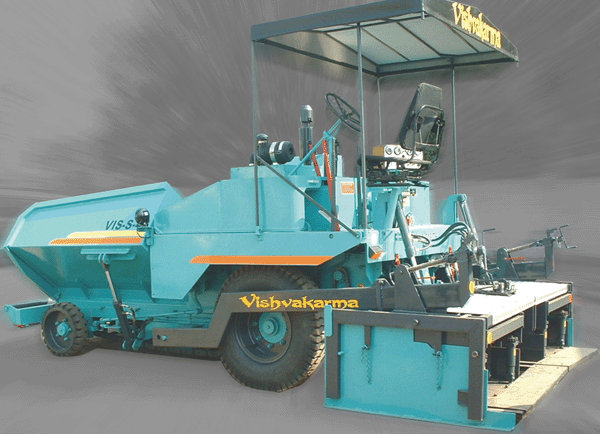

ASPHALT CUM WET MIX PAVER,
Model VIS-40 WA-S |
|
|
 |
|
 |
| Performance |
|
|
| Paving Width |
: |
2.5-4.00 mtrs |
| Paving Thickness |
: |
Upto 10-200 mm |
| Paving speed |
: |
4-23 M/Min |
| Travel speed |
: |
15 Km/h (Max) |
| Dimension |
: |
|
| Overall length |
: |
5300 mm |
| Overall Width |
: |
3000 mm |
| Overall Height |
: |
2750 mm |
| Wheel Base |
: |
2450 mm |
| Wheel Track |
: |
1950 mm |
| Weight |
: |
8500 Kgs. (Approx) |
| Tank Capacity |
|
|
| Fuel Tank |
|
60 Ltrs |
| Hydraulic Tanks |
|
45 Ltrs |
| |
|
|
| Auger screw |
|
|
| Twin Mechanically Drive Abrasion Resistant Auger screw |
|
|

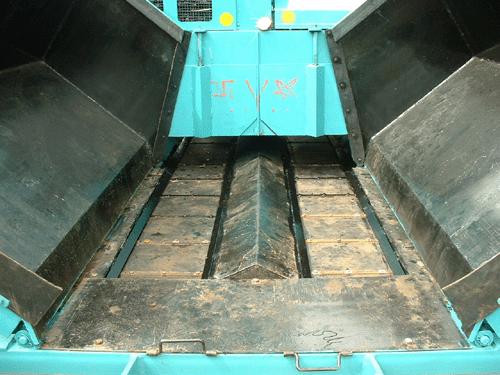

| HOPPER |
Twin
Hydraulic Operated folding hoppers of 4 Cu.mt. Capacity (Approx.) |
|
| Conveyer (Feeder) |
| Twin Lane type 80 mm pitch, mechanically drive |
| |
| Tyres |
| Front - solid rubber type - 2 Nos. |
| Rear - 1100 x 20 - 16 Ply, 2 Nos. |
| |
| Tamper (Screed Vibrator) |
| Hydraulic Drive |
| |
|
|
| 1) Power Unit : |
|
| The
prime over in the Asphalt Paver Finisher unit is “Kirloskar” make model – 4R1040 Diesel engine – 65 HP @ 1800 RPM , with FIP, Air Compressor, 12V alternator, self start starter , 12 V – 21 P Excide make battery, radiator, meters like oil pressure, water temperature, Ammeter, air meter, hours meter, starter button, Parking key, dipper switch etc. |
| |
| |
|

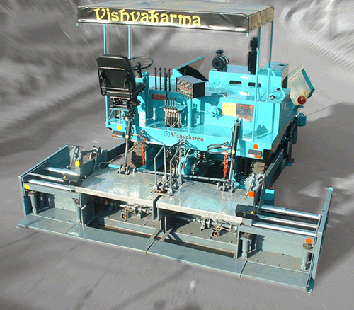

| 2) SCREED :- |
|
|

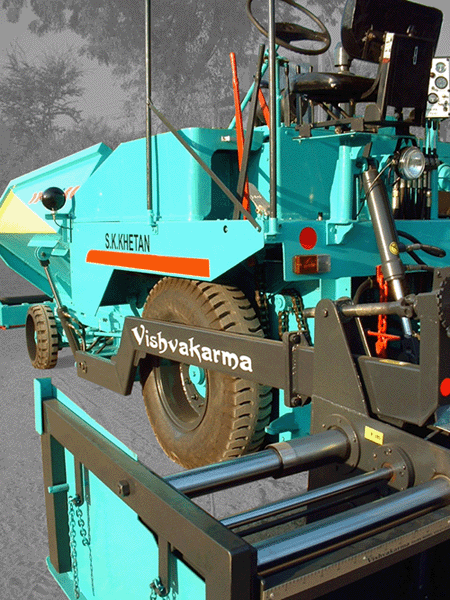

The main screed is consists of 2.5 mtrs (2500 mm.) center fixed screed plate and other two screed plate operated by hydraulically. Sliding on telescopic cylinder guides. It is 380 mm wide, 12 mm thickness are made of stainless
steel. Two kerosene burners. The vibrator hydraulically operated, is fitted on main screed length. Variable lying of width from 2.5 mtrs to 4.00 mtrs is obtained by means of hydraulic controls. |
| |
| |
|
| 2) Hydraulic Parts:- |
|
| |
| Hydraulic jack |
: |
“Dantal” make |
| Hydraulic pump |
: |
“Dowty” make (made in ltaly) |
| Control Valves |
: |
“Walvoil” (made in ltaly) |
| Hydraulic Motors |
: |
“Dowty” make (made in ltaly) |
| All hydraulic pipes are |
: |
“yokohama” make. (Korea) |
|
|
| |
|
| 3) Gear system :- |
|
| |
| Transmission Gear is easy to maintain in local market. |
|
| |
|
