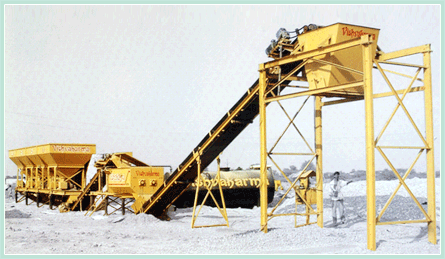

WET MIX MACADAM PLANT


PUG MILL UNIT :
  Pug mill unit capacity is 100 TPH. Here is the end of aggregate circulation cold aggregate form bines through cold conveyer system is being mixed with water from water tank, two oppositely rotating paddle arms shaft make a homogeny our mix and push it to out let tipper and transported to site.




FOUR BIN FEEDER UNIT :
  Four-bin feeder is for feeding the materials form above, where wire-mash is fitted to screen the aggregate to a predetmined size as required, Rest of that is passed by to out side. The volume of the material is determined on this stage .All the four bins are having a screw gate, which is calibrated for adjustment to allow the opening /passage for materials to be dropped on conveyer belt. The sum of all the bins will come on a second conveyer belt known as gathering belt, and the same will be transferred to pug mill unit.

CONTROL CABIN :
  Insulated control cabin with AC Provision.

STORAGE TANK :
  Water tank is fabricated from m.s.section and plates having 10000 Lts. capacity.



ELECTRIC CONTROL PANEL :
  Electric control panel is fabricated from 16 SWG CRC sheet and processed with seven-tank painting, The panel has in-feed master control, Aggregate flow measurement system, which controls flow, individual bin, flow indicator, automatic synchronization of aggregate, aggregate and totalizer, printer for print-out record of all parameters for an instant verify of formula, automatic controls with indication, metering for aggregate, input voltage, and motor load.
